Flow

DVH

Vortex Flowmeter

The DVH is a high-performance multivariable vortex flow meter designed for precise measurement of gases, liquids, and steam. Utilizing the Kármán vortex street principle, it offers accurate and reliable flow measurements by detecting vortices shed by a bluff body placed in the flow stream.

• Measuring range: 3 to 9034 Nm3/h
• Accuracy: ±1 % of reading gas/vapour; ±0.7 % of reading liquids
• Pmax: PN 16; 40; 100
• Tmax: 260°C (400°C)
• Connection: flange DN 15 - DN 200
• Material: stainless steel; Hastelloy

PEM-1000

Electromagnetic Flowmeter

The PEM-1000 is an advanced electromagnetic flowmeter designed for precise, bidirectional measurement of conductive liquids with a minimum conductivity of ≥ 5 µS/cm. It is suitable for various applications, including water treatment, chemical processing, and wastewater management.

• Nominal size: DN 10 - 1000
• Pmax: PN 16
• Temp: -5 to +90 ْC
• Accuracy: 0.5 %
• Analog output: 4 - 20mA
• Communication interface: Modbus RTU / RS 485
• Pulse output (uni- or bidirectional) or frequency output

JUMO flowTRANS MAG I02

Plug-in magnetic inductive flow

The JUMO flowTRANS MAG I02 is a compact, insertion-type electromagnetic flow transmitter designed for precise measurement of conductive liquids. Utilizing the magnetic-inductive measurement principle, it provides accurate, bidirectional flow measurements for various applications, including water treatment, chemical processing, and food and beverage industries.

• Measuring range: 0.2 to 10 m/s
• Pmax: PN 16
• Tmax: 110 ْC
• Pipe diameter: DN 15 to 400
• Input / Output: 4 - 20 mA

JUMO flowTRANS MAG H10

connection: Screw connection; welded socket; Tri-Clamp; flange; external thread
accuracy: 0.5 % of the measured value
Lining materials: PFA
Electrode material: Stainless steel
Temperature range: 130 °C
Pressure: PN 10 to PN 40
Output: Analog output 4 to 20 mA; digital output 1 and 2 (passive)

EPS

Electromagnetic Flowmeter

The EPS is a robust electromagnetic flowmeter designed for accurate, pressure-drop-free volumetric flow measurement of electrically conductive media, including liquids, slurries, and pastes. Utilizing Faraday’s Law of induction, it ensures precise measurements unaffected by pressure, temperature, density, or viscosity.

• Measuring range: 0.05 – 40 715 m3/h
• Accuracy: ± 0.3 %
• Lining material: hard rubber soft rubber NBR (EPDM) PTFE PFA ceramics
• Pmax: PN 40; Tmax: -20...+150 °C
• Connection: flange DN 10 - DN 1200
• Output: analogue/ pulse output status display totaliser HART®

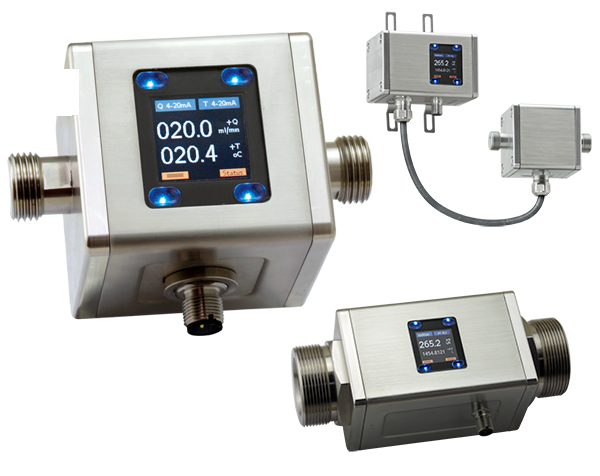

MIM

Magnetic Inductive Flowmeter

The MIM is a compact, all-metal electromagnetic flowmeter designed for precise measurement and monitoring of small to medium-sized flows of conductive liquids in pipes. Utilizing Faraday’s Law of magnetic induction, it provides accurate, bidirectional flow measurements independent of the liquid's properties such as density, viscosity, or temperature.

• Measuring range: 0.01 : 350 l/min liquids
• Accuracy: <± (0.8% of reading + 0.5% of full scale)
• Flow and temperature measurement
• Monitoring transmitter function dosing
• Bidirectional measuring
• Pmax 16 bar; Tmax 140 °C
• All-metal design: stainless steel
• Connection: 0.25 - 2 inch

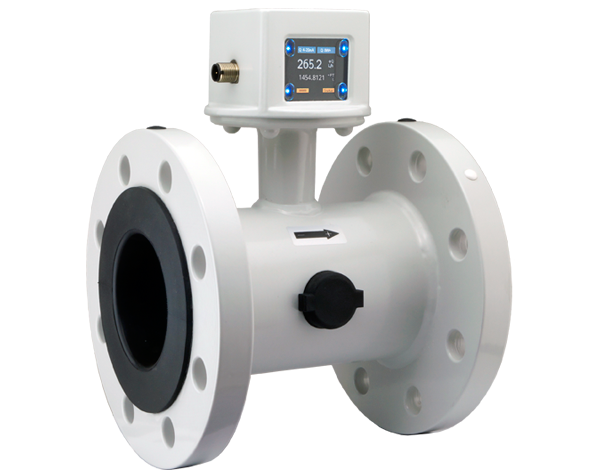

MIS

Magnetic Inductive Flowmeter

The MIS is an electromagnetic flowmeter designed for precise measurement and monitoring of medium-sized flows of conductive liquids in pipelines. Utilizing Faraday’s Law of magnetic induction, it provides accurate, bidirectional flow measurements independent of the liquid's properties such as density, viscosity, or temperature.

• Accuracy: <± (0.5% of reading + 0.5% of full scale)
• Measuring range: 0.6 – 250m3/h liquids
• Bidirectional measuring
• Pmax: 16 bar; Tmax: 70°C
• Connection: flange DN 50 - DN 100
• Monitoring transmitter function dosing

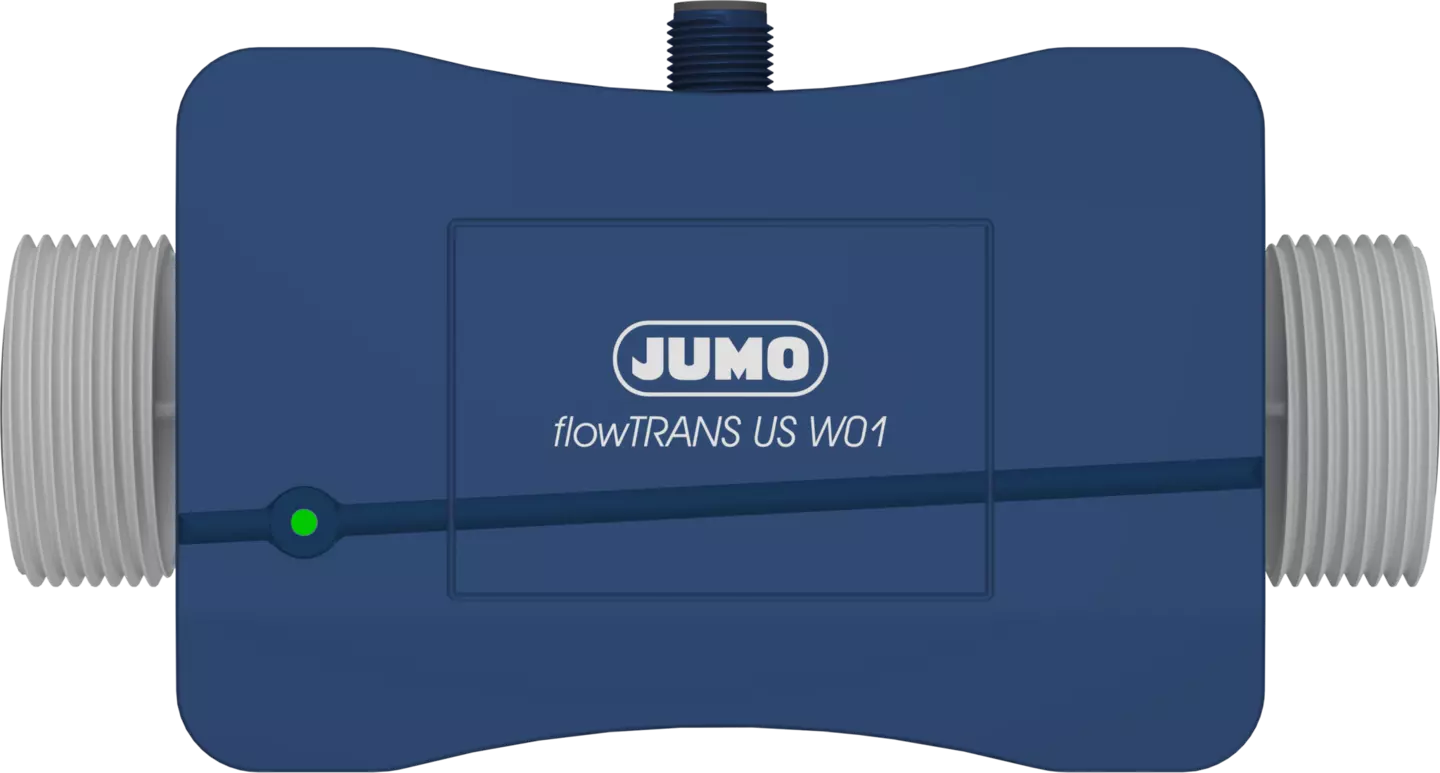

JUMO flowTRANS US W01

In line Ultrasonic flow

The JUMO flowTRANS US W01 is a compact ultrasonic flowmeter designed for precise measurement of both conductive and non-conductive liquids in closed pipelines. Utilizing the transit-time differential method, it ensures accurate flow readings without the need for moving parts, making it maintenance-free and highly reliable.

• Measuring principle: Ultrasonic (transit time)
• Accuracy: 2 % of the measured value
• Measuring dynamics: Up to 1:100 (0.1 to 10 m/s)
• Medium temperature: Up to 80 °C (up to 95 °C with lower accuracy)
• Nominal pressure: PN 16
• Ambient temperature: 70 °C

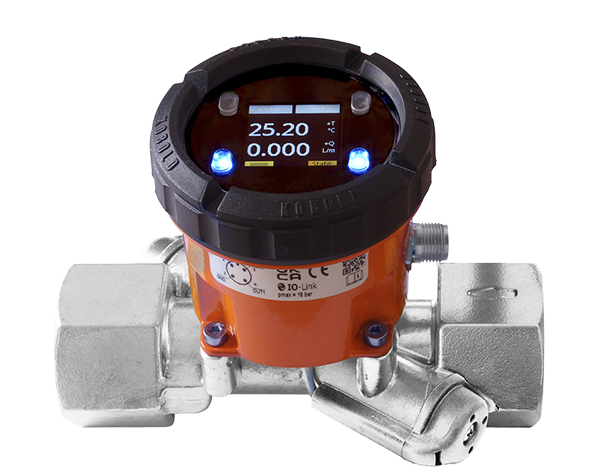

DUK

In line Ultrasonic flow IO-Link

The DUK is a compact ultrasonic flowmeter designed for precise measurement of low-viscosity liquids in closed pipes. It uses the transit-time principle to determine flow rate with high accuracy and minimal pressure loss. It is ideal for a wide range of industrial and process applications. It is suitable for water, cooling systems, heating circuits, and dosing processes.

• Measuring range: 0.08 - 20...2.5 - 630 l/min
• Accuracy: 0.7% of reading + 0.7% of full scale
• Range span: 250
• Pmax: 16 bar; Tmax: 90°C
• Connection: G 0.5 - G 3; 0.5" - 3" NPT female
• Material: brass or stainless steel 1.4408

KATflow 200

Handheld clamp-on ultrasonic flow

The KATflow 200 is a portable ultrasonic flowmeter designed for non-invasive measurement of liquids in full pipes. Utilizing clamp-on transducers, it eliminates the need for pipe cutting or process interruption. Its lightweight design and intuitive interface make it ideal for use in confined spaces or when working at height.

• Pipe diameter range: 10 mm to 6 500 mm
• Temperature range for sensors: -30 °C to +250 °C
• Weight: 650 g
• Robust IP 65 enclosure with added rubber shock protector
• Selectable three-line LCD display and full keypad
• Battery life up to 24 hours with standard NiMH AA batteries for simple replacement

KATflow 210

Integrated Clamp-On Ultrasonic Flowmeter

The KATflow 210 is a portable ultrasonic flowmeter designed for reliable, non-invasive measurement of liquids in full pipes, especially in challenging environments. Utilizing clamp-on transducers, it eliminates the need for pipe cutting or process interruption. Its robust IP67-rated enclosure and advanced battery technology make it suitable for long-term installations in remote areas where access to power is limited.

• Pipe diameter range: 10 mm to 2 500 mm
• Temperature range for sensors: -30 °C to +130 °C
• Rugged integrated IP 67 portable design
• Compact housing 260 (h) x 280 (w) x 200 (d) mm
• Selectable three-line LCD display and full keypad
• Standard operation up to 100 days longer in power-saving modes

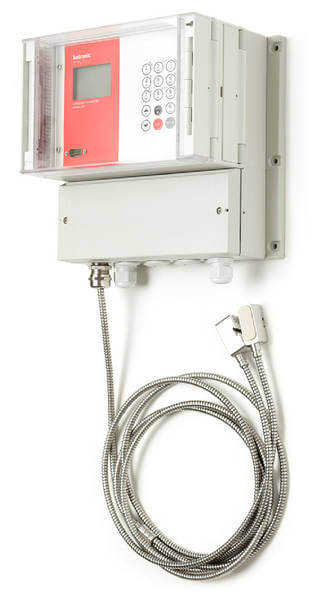

KATflow 150

Advanced Clamp-On Ultrasonic Flowmeter

The KATflow 150 is a fixed-installation ultrasonic flowmeter designed for non-invasive measurement of liquids in fully filled pipes. Utilizing clamp-on transducers, it eliminates the need for pipe cutting or process interruption.

• Pipe diameter range: 10 mm to 6 500 mm
• Temperature range: -30 °C to +250 °C
• Lockable and sturdy IP 66 polycarbonate flowmeter enclosure
• Selectable three-line LCD display and full keypad
• Measurement of two flows simultaneously
• Up to ten input or output slots available
