Flow

JUMO PINOS L02

Calorimetric Flow Sensor & Switch

The JUMO PINOS L02 is a thermal flow sensor designed to measure and monitor the flow velocities of liquid media. Operating on the calorimetric measuring principle, it detects flow rates by measuring the cooling effect of the liquid on a heated sensor element. This method ensures accurate measurements without any moving parts, resulting in minimal maintenance and negligible pressure loss.

• Measurement Principle: Calorimetric (thermal dispersion)
• Measuring Range: 0 to 300 cm/s (liquids)
• Sensor Length: 51 mm
• Maximum Pressure: Up to 75 bar
• Temp: -25°C to +90°C
• Output: 4 - 20 mA

SWK

Variable Area Flowmeter

The SWK is a compact and reliable flow meter and switch designed for monitoring low liquid flow rates. It operates based on a piston (float) with a permanent magnet that actuates a reed switch through the wall of the measuring tube. This non-invasive switching mechanism makes it ideal for tight spaces and sensitive applications.

• Measuring range: 0.05 - 24 l/min water
• Accuracy: ± 4 %
• Pmax: 250 bar
• Tmax: 100 °C
• Connection: 0.5" to 2"
• Material: brass; stainless steel

KAL-L

Calorimetric indicator & Switch

The KAL-L is a thermal air flow switch designed for monitoring the flow of non-hazardous gases. Utilizing the calorimetric principle, it detects flow rate changes by measuring the cooling effect of the gas on a heated sensor. This method ensures reliable operation with no moving parts, resulting in minimal maintenance and negligible pressure loss.

• Measuring range: 1 m/s - 20 m/s air
• Pmax: 8 bar
• Tmax: 120°C
• Switching accuracy: ±10
• Connection: insertion
• Material: st-steel

PSE

Paddle Switch

The PSE is a mechanical flow switch designed for monitoring the flow of liquids in pipelines. Utilizing a paddle mechanism, it detects flow rates by the deflection of a baffle plate, which actuates a reed contact. This design ensures reliable operation without the need for external power sources.

• Switching range: 68 - 533 l/min water
• Pmax: 100 bar
• Tmax: 110 °C
• Connection: G 0.5
• Material: brass; stainless steel

FPS

Paddle Bellows Flow Monitor

The FPS is a mechanical flow switch designed for monitoring liquid flow in pipelines. Utilizing the paddle bellows principle, it detects flow rates by the deflection of a paddle, which actuates a microswitch. This design ensures reliable operation without the need for external power sources.

• Switching range: 0.17 to 165.7 m³/h water
• Pmax: 11 bar (brass); 30 bar (stainless steel)
• Tmax: 120°C
• Material: brass; stainless steel
• Connection: insertion

KATflow 180

Gas Clamp-On Ultrasonic Flowmeter

The KATflow 180 is an advanced, non-invasive ultrasonic flowmeter specifically designed for accurate measurement of gas flow in various industrial applications. Utilizing innovative transit-time difference technology, it enables reliable flow measurements without the need for pipe penetration, ensuring process integrity and safety.

• Pipe diameter range: 25 mm to 1500 mm
• Temperature range: -20 °C to +135 °C
• Protection: IP66
• Pressure range: 1 bar
• Flow velocities: 0.1 m/s to 75 m/s
• All commonly used pipe materials

ANU

Pitot Tube Differential Pressure

The ANU is a pitot tube sensor designed for accurate and cost-effective flow measurement of gases, steam, and liquids in closed pipelines. Utilizing the differential pressure principle, it measures the difference between dynamic pressure on the upstream side and static pressure on the downstream side to determine flow rates.

• Measuring range: 0.32 - 250 Nm3/h air
• Accuracy: ±1.5 %
• Pmax: 400 bar
• Tmax: 1175 °C
• Probe length: 50 - 8000 mm
• Connection: G 0.5 - G 2
• Material: st-steel

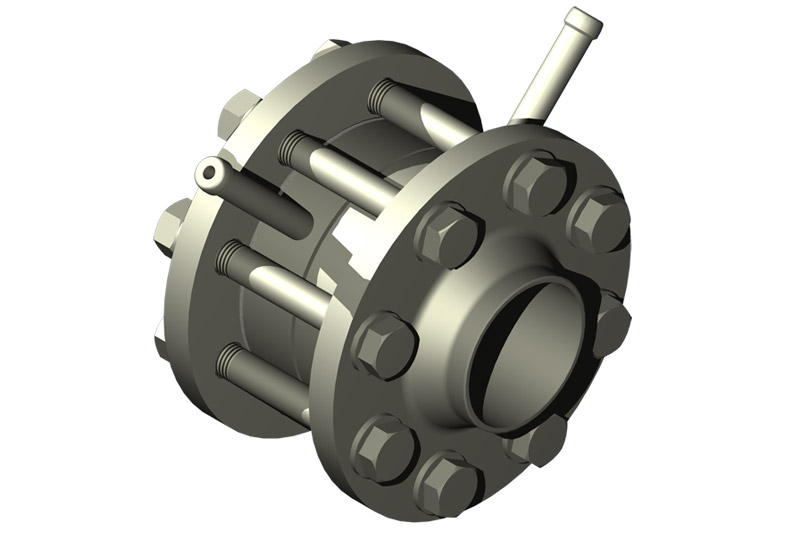

ZPK

Orifice Plate Diffrential Pressure

The Aplisens ZPK is a robust differential pressure flowmeter designed for accurate measurement of liquid flow in closed pipelines. Utilizing a nozzle or orifice plate to create a pressure drop, it enables precise flow calculations based on well-established fluid dynamics principles.

• Pmax: PN 6 - PN 100
• Tmax: 500 °C
• Connection: DN 25 - DN 800

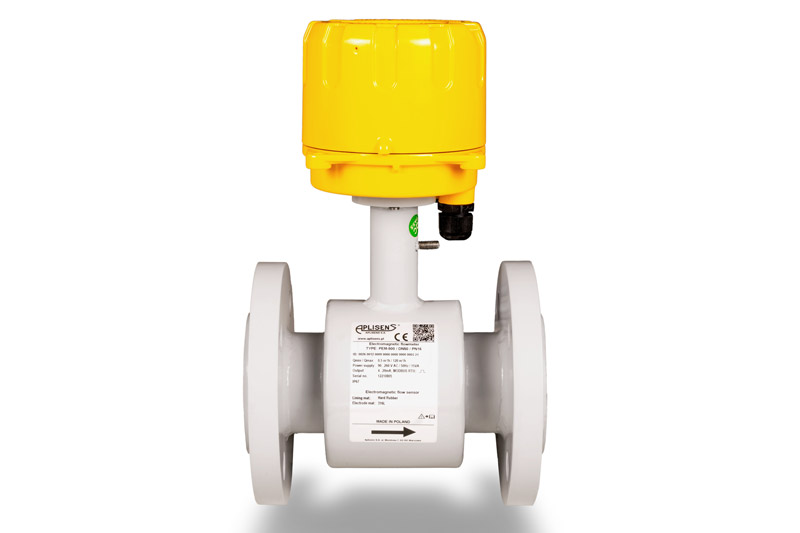

PEM-500

Electromagnetic Flowmeter

The PEM-500 is an electromagnetic flowmeter designed for precise, bidirectional measurement of conductive liquids with a minimum conductivity of 5 µS/cm. It is suitable for various applications, including water treatment, chemical processing, and wastewater management.

• Nominal size: DN 10 - 300
• Pmax: PN 16
• Temp: -50 to 90 ْC
• Accuracy: 0.5%
• Output signal: 4 - 20mA
• Communication interface Modbus RTU / RS485
• Measuring range: 0.08 to 28274 m3/h

Other Flowmeters

 Switching range: 300 - 3600 m
Connection:&nbsp;G&nbsp;⅜&nbsp;,G 2,&nbsp;⅜&nbsp;<br />
, flange DN10 ... DN50,<br />
weld-on flange DN40 ... DN500<br />
<i class="fas fa-check-circle"></i>Material:&nbsp;brass, stainless steel, PVC<br />
pmax:&nbsp;PN16<br />
tmax:&nbsp;100&deg;C<br />
<i class="fas fa-check-circle"></i>Accuracy:&nbsp;&plusmn;3 ... &plusmn;5 % of full scale</p>

• linig material
•  Switching range: 300 - 3600 m

Air/Gas/Steam Flowmeters

Pipe diameter range 25 mm to 1500 mm
Temperature range for sensors -20 °C to +135 °C
Protection Type: IP 66
Pressure Max:  range1 bar
Flow velocities: 0.1 m/s to 75 m/s

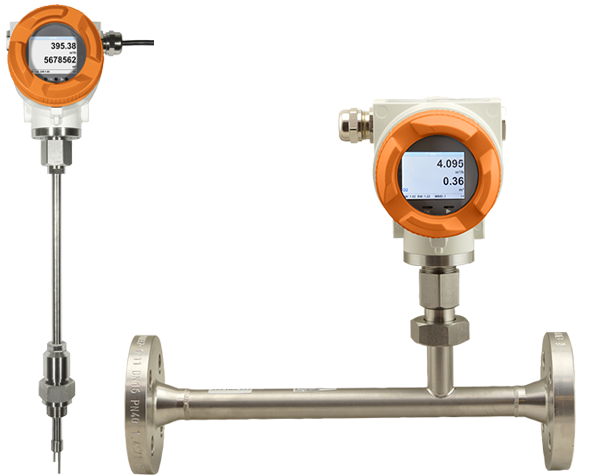

KEC

Thermal Energy Flowmeter

The KEC is a thermal mass flow meter designed for precise measurement of gas flow rates in various industrial applications. Utilizing the calorimetric measuring principle, it offers accurate, real-time monitoring without the need for additional temperature or pressure compensation.

• Measuring range: 7 - 3440 Nm3/h air
• Accuracy: ±1.5 %
• Pmax: 100 bar
• Tmax: 180 °C
• Connection: G 0.5 - G 2 male
• Material: st-steel
